Integrating ASi-5 PCB Modules and Making any Component ASi-capable

ASi-5 PCB Modules for various applications

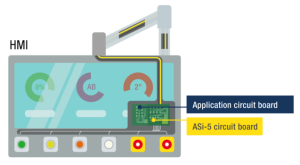

With a Bihl+Wiedemann ASi-5 PCB module, it is possible to add an ASi-5 interface to a wide range of applications. The control elements shown in the figure on the left represent a typical example. They can be easily connected to the PLC using the PCB modules – decentrally and in an existing housing.

At the same time, the control elements can be easily integrated into an existing ASi network. Installing the compact (W / H / D: 70 × 40 × 26.5 mm) ASi-5 PCB module on an existing circuit board eliminates more than just the need for complex wiring. You also save space for additional IP20 or IP67 I/O modules.
